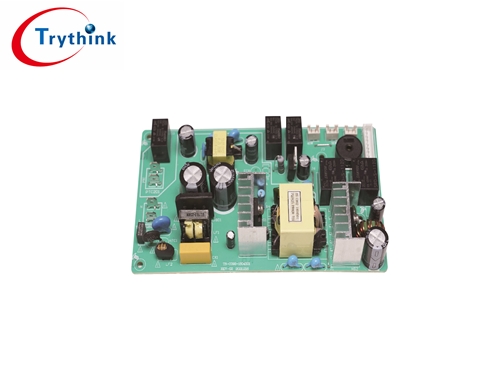

92W Open Frame

Model No.：92W(TS-C092-1804501)

Features：

Meet safety and EMC request

Meet DOE VI and COC 5

High reliability and stability, Long Life

Certification：

92W Open Frame

Detailed Spec

Input

Input Range：
100V-240VAC
Inrush Current：
120A Max
Power Consumption：
Level V 0.5W Max;level VI 0.21W Max

Output

Output Voltage/Current：
18V4.5A+12V1A
Line Regulation：
±5%
Voltage Range：
15~18V
Current Range：
3~4.5A
Efficiency Level：
Level V and VI Alternative

EMC

SURGE：
1KV-4KV（optional）
ESD：
Air ESD ± 8KV Contact ESD ± 6KV
CE、RE：
EN55032,FCC15,GB9254 Class B etc

Others

Dimension：
（L*W*H)150*88*35mm
